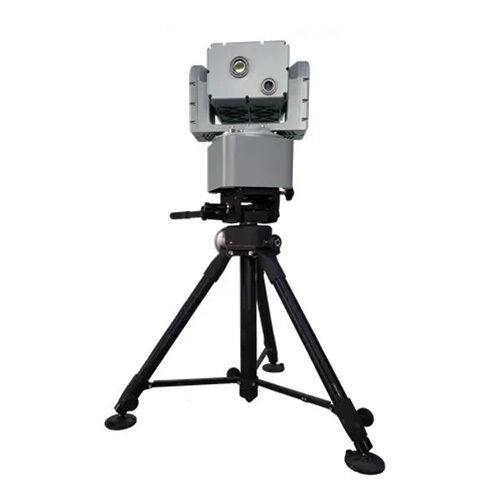

The MR-ACT gas remote sensing imaging early warning system is designed for long-range gas cloud detection and chemical imaging. Utilizing passive Fourier transform infrared spectroscopy technology, it can measure over 400 types of gases across a monitoring diameter exceeding 10 kilometers. This system provides critical early warning capabilities for various applications.
Ideal for chemical park gas leakage monitoring, hazardous chemical emergency monitoring, major event security, fire protection, and forest/grassland fire prevention.
| Attribute | Value |
|---|---|
| Measurable gas | Petrochemical industry: methanol, ethanol, acetic acid, aniline, styrene, etc.;Fire protection industry: AC, CS2, nitric acid, hydrazine, benzene, etc. ;Other chemicals: hydrazine, ASH3, H2S, NF3, HCL, SO2, etc.;Other poisonous gases: special poisonous gases.More than 400 kinds of gases can be measured. |
| Detector type | Cooled mercury cadmium telluride detector |
| Spectral range | 8~12μm |
| Spectral resolution | Better than 1cm-1 |
| Spectral acquisition rate | 20 spectra/second (Δσ≤ 1 cm-1, double-sided interference pattern) |
| Camera resolution | 640 x 512 pixels (night vision infrared) |
| Voltage/power consumption | (110~230) VAC / < 120 W |
| Installation method | Fixed, portable, vehicle-mounted |
| Dimensions | 380×270×500mm (length×width×height) |
| Weight | 28Kg |
