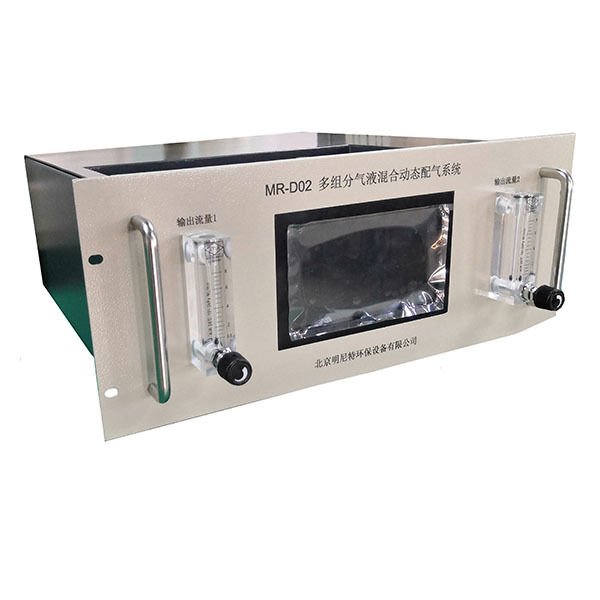

The MR-D02 multi-component gas-liquid mixing dynamic gas distribution meter is a dosing device used by scientific research institutes and other units when using poison gasification. When the standard gas cannot meet the use, the liquid reagent can be gasified and diluted to reach a liquid level. Gas distribution function. It can be used to test a variety of technical indicators such as linearity, accuracy, and repeatability of gas analyzers. It is an indispensable testing tool for calibration, maintenance and repair of gas analysis instruments and a dilution device for fixed concentration gases.
A high-precision syringe pump and constant temperature heating device are used, combined with a high-precision mass flow controller to vaporize and dilute the liquid to achieve the function of liquid gas distribution. MR-D02 is a device that integrates liquid vaporization, dynamic gas distribution, and gas and liquid mixing and distribution.
Suitable for chemical engineering, environmental monitoring, pharmaceutical research, and any industry requiring precise gas and liquid mixing and distribution.
No attributes specified.
| Parameter | Value |
|---|---|
| Flow accuracy | gaseity:≤0.5% Liquid state:≤1.5% |
| Flow linearity | ≤±0.3%F.S |
| Flow repeatability | ≤±0.2%F.S |
| Dilution gas flow range | 0~20SLM; 0~10SCCM; 0~50SCCM; 0~500SCCM (Can be selected according to needs) |
| Dilution ratio | 100:1/200:1 |
| Maximum ratio | 5000:1 (Can be customized according to customer needs) |
| Input pressure | 100Kpa~500Kpa |
| Display method | 800X480 liquid crystal 7 inch touch screen |
| Ambient temperature | -10℃~+50℃ |
| Environment humidity | <85%RH(No condensation) |
| Equipment pressure resistance | <1Mpa |
| Working pressure difference range | 0.05Mpa~0.3Mpa |
| Working power supply | 110VAC~240VAC，50±0.5Hz |
| Size | (483x195x452)mm |
| Weight | 25kg~30kg |
