MR-FAT Fourier Transform Infrared Telemeter

Product Details:

Detail Information

Measurable Gas:

Petrochemical Industry: Methanol, Ethanol, Acetic Acid, Aniline, Styrene, Etc.; Fire Protection Industry: AC, Acetone, CS2, Nitric Acid, Hydrazine, Benzene, Etc.; Other Chemicals: Hydrazine, AsH3, H2S, NF3, HCL, SO2, Etc.; Military Poison Gases: VX, GA, GD

Detector Type:

Cooled Mercury Cadmium Telluride Detector

Detection Distance:

More Than 4km

Spectral Range:

8~12μm

Spectral Resolution:

Better Than 2cm-1

Spectral Acquisition Rate:

20 Spectra/second (Δσ≤ 2 Cm-1, Double-sided Interference Pattern)

FPV Camera:

960P

Operating Temperature:

-20℃~+50℃

Protection Level:

Detector IP66, Drone Protection Level IP45

Installation Method:

Suspension Mounted Below M300RTK

Dimensions:

Dimensions (expanded, Excluding Blades): 810×670×430 Mm (length×width×height) Dimensions (folded, Including Paddles): 430×420×430 Mm (length×width×height)

Weight:

12.8Kg (including Dual Batteries)

Product Description

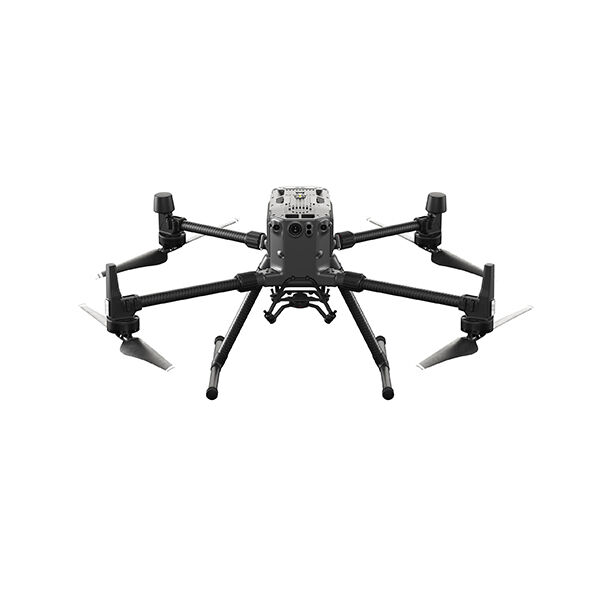

MR-FAT UAV Fourier Transform Infrared Telemetry Imager

The MR-FAT UAV Fourier transform infrared telemetry imager is a scanning gas infrared remote sensing telemetry instrument based on passive Fourier transform infrared spectroscopy technology. It can automatically detect and alarm target gas clouds and identify gases, providing semi-quantitative gas concentrations. Mounting this instrument on a drone enhances its maneuverability.

Infrared spectrum, also called molecular fingerprint, exhibits unique characteristics for different gas molecules. Most toxic and harmful gases have characteristic peaks in the long-wave infrared band. Fourier transform infrared spectroscopy technology leverages these infrared spectral characteristics for gas detection and analysis.

Key Benefits:

Real-time Gas Detection: Automatically detects and alarms for target gas clouds.
Gas Identification: Identifies the types of gases present.
Semi-Quantitative Analysis: Provides semi-quantitative gas concentration measurements.
Enhanced Maneuverability: Drone-mounted for increased operational flexibility.
Molecular Fingerprint Technology: Utilizes infrared spectral characteristics for accurate analysis.

Target Industries & Applications:

Suitable for petrochemical, fire protection, chemical, and military applications requiring remote gas detection and analysis.

Product Attributes

FOB Price: Contact the supplier

MOQ: Contact the supplier

Technical Specifications

Attribute	Value
Measurable gas	Petrochemical industry: methanol, ethanol, acetic acid, aniline, styrene, etc.; Fire protection industry: AC, CS2, nitric acid, hydrazine, benzene, etc.; Other chemicals: hydrazine, AsH3, H2S, NF3, HCL, SO2, etc.; Military poison gases: VX, GA, GD, Soman, sarin, mustard gas, etc.
Detector type	Cooled mercury cadmium telluride detector
Detection distance	More than 4km
Spectral range	8~12μm
Spectral resolution	Better than 2cm-1
Spectral acquisition rate	20 spectra/second (Δσ≤ 2 cm-1, double-sided interference pattern)
FPV camera	960P
Operating temperature	-20℃~+50℃
Protection level	Detector IP66, drone protection level IP45
Installation method	Suspension mounted below M300RTK
Dimensions	Dimensions (expanded, excluding blades): 810×670×430 mm (length×width×height) Dimensions (folded, including paddles): 430×420×430 mm (length×width×height)
Weight	12.8Kg (including dual batteries)
